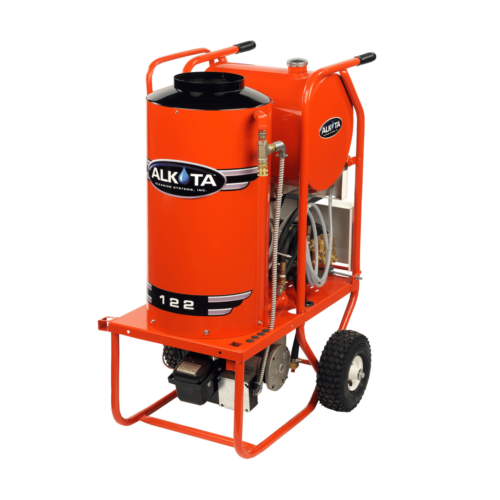

Oil fired steam cleaners use water heated by oil to clear away challenging grease and oil. These portable cleaners are built on a welded heavy gauge frame for unparalleled versatility in tackling industrial and commercial cleaning tasks like degreasing, de-icing, and chemical flushing. Operating at lower pressures (250 to 400 PSI) compared to standard hot water pressure washers, they ensure safe and effective cleaning in sensitive areas like engine compartments. With precise temperature control (300 to 350 degrees Fahrenheit), these cleaners protect surfaces while delivering a powerful and reliable cleaning experience.
Models
122 |
240 |
122X4 |
240EN |
|
|---|---|---|---|---|
Steam Capacity* (GPH) |
120 | 240 | 120 | 240 |
Wash Capacity* |
N/A | N/A | N/A | N/A |
Steam Pressure* (PSI) |
250 | 250 | 400 | 350 |
Wash Pressure* |
N/A | N/A | N/A | N/A |
Pump |
Triplex, Oil Bath | Triplex, Oil Bath | Triplex, Oil Bath | Triplex, Oil Bath |
Motor |
3/4 HP, 115 V, 1 PH | 2.3 HP, 115 V, 1 PH | 3/4 HP, 115 V, 1 PH | 2.3 HP, 115 V, 1 PH |
Coil Size |
126′ 1/2″, Sch. 80 | 245′ 1/2″, Sch. 80 | 126′ 1/2″, Sch. 80 | 245′ 1/2″, Sch. 80 |
Burner, Oil, Pressure Atomizing, Auto, Ignition |
Kerosene, #1 or #2, Diesel 392,000 | Kerosene, #1 or #2, Diesel 630,000 | Kerosene, #1 or #2, Diesel 392,000 | Kerosene, #1 or #2, Diesel 630,000 |
Fuel Consumption |
2.80 GPH | 4.50 GPH | 2.80 GPH | 4.50 GPH |
Fuel Capacity |
10 Gal. | 10 Gal. | 8 Gal. | 10 Gal. |
Wand |
Open – Standard | Open – Standard | Open – Standard | Open – Standard |
Hose |
3/8″ x 50′ | 3/8″ x 50′ | 3/8″ x 50′ | 3/8″ x 50′ |
Chemical |
Precise Metered | Precise Metered | Precise Metered | Precise Metered |
Float Tank |
Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
Temperature Control |
High Limit | High Limit | High Limit | High Limit |
Dimensions |
34″ x 27.5″ x 42″ | 57″ x 29″ x 45″ | 46″ x 31″ x 49″ | 57″ x 29″ x 45″ |
Weight |
400 lb. | 665 lb. | 535 lb. | 665 lb. |
