Dry steam generators are low water volume dry vapor steam cleaners perfect for thawing frozen drains, tanks, piping systems, and culverts. Their many industrial uses include curing cured-in-place (CIPP) liners during trenchless pipe and sewer repair. Trusted by street and highway departments and manufacturing plants alike, our dry steam machines are used for specialized tasks like thawing railroad tank cars and degassing fuel tanks for welding prep.
Models:
126 |

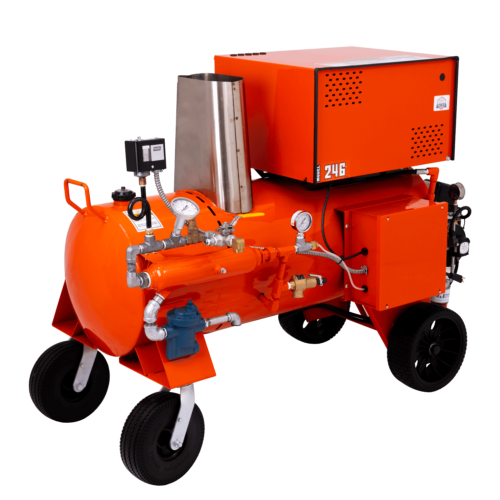

246 |
|
|---|---|---|
Heat Input (BTU/HR) |
390,000 | 630,000 |
Steam Pressure (PSI) |
50-80 | 80-100 |
Pump Motor (HP) |
2.0 | 2.0 |
Voltage |
220V, 50HZ, 1PH, 15A | 115V, 60HZ, 1PH, 15A |
Pump |
Belt Drive, Oil Bath Triple Plunger Pump | Belt Drive, Oil Bath Triple Plunger Pump |
Burner Coil |
Vertical Configuration Spiral Wound Schedule 80 AST-53 Steel Pipe, Cold Water Wrap | Vertical Configuration Spiral Wound Schedule 80 AST-53 Steel Pipe, Cold Water Wrap |
Controls |
Pressure Switch, Pressure Gauge, Temperature Gauge, Rotary 3 Position Switch – Off/Pump/Burner | Oil Primary Control, Pressure Switch, Temperature Control, Relief Valve, Pressure Gauge, Temperature Gauge, Manual Reset High Temperature Control, 90 Second Delay Timer on Burner Star Up, 90 Second Delay on Pump Shut Off, Rotary 3 Position Switch – Off/Pump/Burner. |
Burner |
Diesel Fired Burner | Diesel Fired Burner |
Fuel Consumption (Gal/hr) |
2.8 | 4.5 |
Fuel Tank |
10.5 gal | 10.5 gal |
Temperature |
Up to 300° F. Dry Steam | Up to 300° F. Dry Steam |
Steam Trap |
Dry Steam Trap & Seperator for Removal of 85% of Water | Dry Steam Trap & Seperator for Removal of 85% of Water |
Safety Valve |
Safety Relief Steam Valve | Safety Relief Steam Valve |
Safety |
Low Water, High Temperature & High Pressure Safety | Low Water, High Temperature & High Pressure Safety |
Wheels |
Two Pneumatic Wheels for ease of portability | Four non-Flat Wheels for ease of portability |
Weight |
450 lb. | 725 lb. |
Dimensions |
34″ x 28″ x 42″ | 63″ x 29″ x 43″ |
