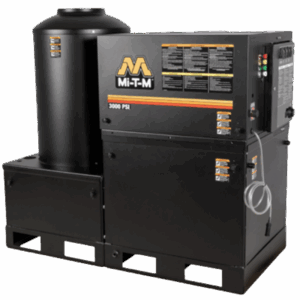

There are six models in the Commercial ChoreMaster® Series Pressure Washers
| Model | PSI | GPM | HP/Motor | Unit Amps | Pump | Heater kW | Temperature Rise | Dimensions (LxWxH) | Ship Wt. | Net Wt. |
|---|---|---|---|---|---|---|---|---|---|---|
| HAE-2503-0E4G | 2500 | 2.8 | 6.0 HP, 480V, 3Ø | 68.0A | General | 48 | 120°F. | 36″ x 25″ x 49″ | 725 lb. | 625 lb. |
| HAE-3004-0E4G | 3000 | 3.9 | 8.0 HP, 480V, 3Ø | 100.0A | General | 72 | 130°F. | 36″ x 25″ x 49″ | 830 lb. | 725 lb. |
The HAE Series is all-electric and features a patented heat exchanger design to provide consistent and efficient hot water on-demand.
Pump
- Factory preset unloader
- Stainless-steel and brass unloader valve
- Forged brass manifold
- Thermal relief valve
Motor
- Open drip-proof electric motor with manual thermal overload protection
- On/off power switch
Frame
- Stainless-steel base and frame with rubber isolators
Component
- Time delay shutdown
Heat Exchanger
- Used for consistent and efficient on-demand hot water
- 120°F to 130°F temperature rise above in-take water, obtained within 3 to 5 minutes
- Adjustable thermostat
- On/off power switch
- Powder coated steel frame
- Patented cartridge design
- Low maintenance, stainless-steel coils in aluminum casings for maximum efficiency
- Eliminates constant cleaning and heat loss
Unit Includes
- Quick connect nozzles – 0°, 15°, 25° and 40°
- External downstream detergent injector with detergent nozzle
- 50-foot x 3/8-inch wire-braided black hose
- Adjustable pressure insulated dual lance with trigger gun
Limited Warranties:
- 1 Year Electric Motor
- 7 Year General Pump
