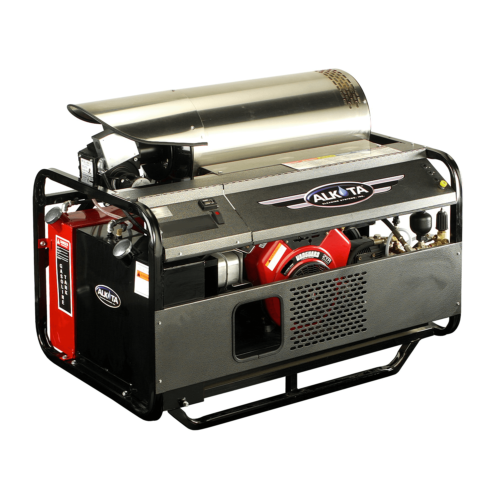

Skid-mounted, gas engine drive hot water pressures by Alkota are equipped with a 12 volt burner system powered by the engine’s charging system. These full-size skid units are ideal for trailer, truck, or van mounting, and bring versatility and convenience to tough power washing jobs.
Features:
- Schedule 80 coil pipe and stainless steel coil wrapper provide durability and resistance against corrosion
- Welded frame and solid channel engine/pump mount ensure dependability and exceptional performance
- No electricity required, simply hook up a water source and you’re ready to start cleaning
- Hydro-insulated coil design prioritizes user safety and delivers cost-effective performance
- 7-year coil warranty
- Soft Damping System protects the coil, pump, and high-pressure components, ensuring longevity and reliability
Included Accessories:
- Industrial hose with a swivel end and bend restrictor
- Professional-grade insulated trigger gun with safety lock
- Insulated wand for user safety
- Quick connect nozzle
- Winterizing valve to safeguard your investment against freezing
Models:
Model |
GPM |
PSI |
BTU |
Coil |
Coil Size |
Engine |
Temperature |
Fuel Tank |
Float Tank |
Burner Float Tank |
Pump |
WT |
Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5355EAD | 5.0 | 3500 | 355,000 | 126′ 1/2″ Sch. 80 | 14″ | Vanguard 18 HP (Electric) | Up to 210F | 6.75 Gal | SS Tank | 9.7 Gal | GP | 760 lb | 48” L x 34” W x 39” H |
| 5355J | 5.0 | 3500 | 355,000 | 126′ 1/2″ Sch. 160 | 14″ | Honda GX630 (Electric) | Up to 210F | 6.75 Gal | SS Tank | 9.75 Gal | GP | 765 lb | 48” L x 34” W x 39” H |
| 5405J | 5.0 | 4000 | 355,000 | 126′ 1/2″ Sch. 80 | 14″ | Honda GX630 (Electric) | Up to 210F | 6.75 Gal | SS Tank | 9.7 Gal | GP | 765 lb | 48” L x 34” W x 39” H |
| 5505JH | 4.5 | 5000 | 355,000 | 126′ 1/2″ Sch. 160 | 14″ | Honda GX630 (Electric) | Up to 210F | 6.75 Gal | SS Tank | 9.7 Gal | GP | 765 lb | 48” L x 34” W x 39” H |
| 5505J | 4.5 | 5000 | 355,000 | 126′ 1/2″ Sch. 160 | 14″ | Vanguard 23 HP (Electric) | Up to 210F | 6.75 Gal | SS Tank | 9.75 Gal | GP | 765 lb | 48” L x 34” W x 39” H |
| 8405HA | 8.0 | 4000 | 550,000 | 158′ 1/2″ Sch. 80 | 24″ | Honda GX800 (Electric) | Up to 210F | 8.5 Gal | N/A | 10 Gal | GP | 850 lb | 72” L x 48” W x 70” H |
| 10305HA | 10.0 | 3000 | 785,000 | 158′ 1/2″ Sch. 80 | 24″ | Honda GX800 (Electric) | Up to 210F | 8.5 Gal | N/A | 10 Gal | GP | 2075 lb | 72” L x 48” W x 70” H |
